How to Specify BrazeTyte® Tube Fittings
BrazeTyte® stainless steel tube fittings are designed for use with various sizes of tubing and are intended to be brazed, soldered, or welded directly to the tubing.
BrazeTyte® fitting part numbers use symbols that identify the size and style of the fitting.
The dash numbers indicate tube OD size by 1/16 inches, thus -4 means 4/16″ or 1/4″, -10 means 10/16″ or 5/8″, etc. The first series of numbers identifies the style or configuration of the fitting. The letters designate combinations of male, female and swivel ends of the part (see below).
LETTER DESIGNATION
EXAMPLE: 15MF-8
FF
MM
MF
SF
SM
All Female
All Male
Male and Female
Swivel and Female
Swivel and Male
15
style
TEE
male run
MF
male
and
female
-8
tube OD
size
1/2″
Click on any Fitting for Specifications

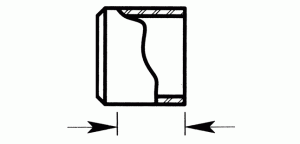

BrazeTyte : Cap (Female Closed) Products listed below in blue are available in our Online Store . Please call 800-255-8823 or request a quote for custom orders, products not available in our online store, custom lengths and large quantities.
Used to terminate a line or fitting. Fits over male end of BrazeTyte fitting or over the O.D. of tubing. Dimensions are in inches.
ITEM #
SIZES
WALL
A
10F-4
1/4
.032
1/4
10F-5
5/16
.032
1/4
10F-6
3/8
.032
1/4
10F-8
1/2
.032
5/16
10F-10
5/8
.032
7/16
10F-12
3/4
.049
1/2
10F-16
1
.049
3/4
10F-20
1-1/4
.049
13/16
10F-24
1-1/2
.049
15/16

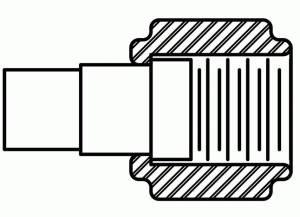

BrazeTyte : Expander (Male OD <> Female ID) Products listed below in blue are available in our Online Store . Please call 800-255-8823 or request a quote for custom orders, products not available in our online store, custom lengths and large quantities.
Used as an adapter where an expansion from a smaller OD to a large OD is required. Can be employed in conjunction with the 10FF union to join different OD sizes of tubing. May also be utilized with any MF, FF or SF style fitting. Dimensions are in inches.
ITEM #
SIZES
WALL
A
B
C
10MF-4-5
1/4 x 5/16
.025
15/16
1/4
.316
10MF-4-6
1/4 x 3/8
.025
7/8
1/4
.379
10MF-5-6
5/16 x 3/8
.025
1-1/32
5/16
.379
10MF-6-8
3/8 x 1/2
.032
1-9/32
3/8
.504
10MF-8-10
1/2 x 5/8
.035
1-3/8
1/2
.629
10MF-8-12
1/2 x 3/4
.035
1-3/8
1/2
.754
10MF-10-12
5/8 x 3/4
.035
1-3/8
5/8
.754
10MF-12-16
3/4 x 1
.049
2-7/16
3/4
1.005
10MF-16-20
1″ x 1-1/4
.049
2-7/16
1
1.255
10MF-16-24
1″ x 1-1/2
.049
2-1/16
1
1.505
10MF-20-24
1-1/4 x 1-1/2
.049
2-3/8
1-1/4
1.505

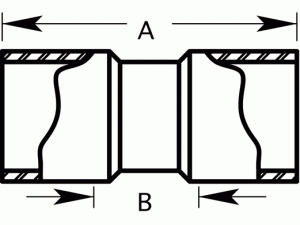

BrazeTyte : Union (Female <> Female) Products listed below in blue are available in our Online Store . Please call 800-255-8823 or request a quote for custom orders, products not available in our online store, custom lengths and large quantities.
Used as a coupling. Both ends will accept either tube OD or male end of BrazeTyte fitting. When connecting different OD sizes, either the 5MF reducer or the 10MF expander should be employed. Dimensions are in inches.
ITEM #
SIZES
WALL
A
B
10FF-4
1/4
.025
15/16
11/16
10FF-5
5/16
.025
1
3/4
10FF-6
3/8
.028
1
3/4
10FF-8
1/2
.032
1-5/32
27/32
10FF-10
5/8
.035
1-11/32
29/32
10FF-12
3/4
.042
1-9/16
1-1/16
10FF-16
1
.049
2-1/4
1-1/2
10FF-20
1-1/4
.049
2-1/2
10FF-24
1-1/2
.049
2-11/16
BrazeTyte : Transition (Male <> Male) Products listed below in blue are available in our Online Store . Please call 800-255-8823 or request a quote for custom orders, products not available in our online store, custom lengths and large quantities.
Used as a reducer or expander to accomplish a change in O.D. size. Can be employed in conjunction with any MF, FF or SF style fitting to obtain a reduced or expanded male end. Also can be used as a butt weld connector when a change in O.D. is desired. Dimensions are in inches.
ITEM #
SIZES
WALL
A
5MM-4-5
1/4 x 5/16
.025
31/32
5MM-4-6
1/4 x 3/8
.025
15/16
5MM-5-6
5/16 x 3/8
.025
1-1/16
5MM-6-8
3/8 x 1/2
.032
1-5/16
5MM-8-10
1/2 x 5/8
.035
1-7/16
5MM-8-12
1/2 x 3/4
.035
1-7/16
5MM-10-12
5/8 x 3/4
.035
1-7/16
5MM-12-16
3/4 x 1
.049
2-1/2
5MM-16-20
1 x 1-1/4
.049
2-1/2
5MM-16-24
1 x 1-1/2
.049
2-1/8
5MM-20-24
1-1/4 x 1-1/2
.049
2-7/16

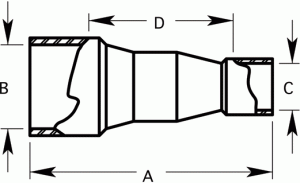

BrazeTyte : Reducing Union (Female <> Female): in tube OD sizes Products listed below in blue are available in our Online Store . Please call 800-255-8823 or request a quote for custom orders, products not available in our online store, custom lengths and large quantities.
Used as a coupling. Both ends will accept either tube OD or male end of BrazeTyte fitting. Dimensions are in inches.
ITEM #
SIZES
WALL
A
B
C
5FF-5-4
5/16 x 1/4
.025
7/8
.316
.254
5FF-6-4
3/8 x 1/4
.025
2-7/32
.379
.254
5FF-6-5
3/8 x 5/16
.025
1
.379
.316
5FF-8-6
1/2 x 3/8
.032
1-1/4
.504
.379
5FF-10-8
5/8 x 1/2
.035
1-5/16
.629
.504
5FF -12-8
3/4 x 1/2
.035
1-5/16
.754
.504
5FF-12-10
3/4 x 5/8
.035
1-5/16
.754
.629
5FF-16-12
1 x 3/4
.035
2-3/8
1.005
.754
5FF-20-16
1-1/4 x 1
.049
2-3/8
1.255
1.005
5FF-24-16
1-1/2 x 1
.049
2
1.505
1.005
5FF-24-20
1-1/2 x 1-1/4
.049
2-5/16
1.505
1.255

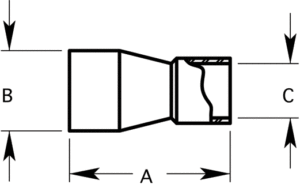

BrazeTyte : Reducer (Male OD <> Female ID) Products listed below in blue are available in our Online Store . Please call 800-255-8823 or request a quote for custom orders, products not available in our online store, custom lengths and large quantities.
Used as an adapter where a reduction from larger OD to a smaller OD is required. Can be employed in conjunction with any MF, FF, or SF style fitting to reduce female BrazeTyte end. Dimensions are in inches.
ITEM #
SIZES
WALL
A
B
C
5MF-5-4
5/16 x 1/4
.025
15/16
5/16
.254
5MF-6-4
3/8 x 1/4
.025
7/8
3/8
.254
5MF-6-5
3/8 x 5/16
.025
1-1/32
3/8
.316
5MF-8-4
1/2 x 3/8
.032
1-9/32
1/2
.379
5MF-10-8
5/8 x 1/2
.035
1-3/8
5/8
.504
5MF-12-8
3/4 x 1/2
.035
1-3/8
3/4
.504
5MF-12-10
3/4 x 5/8
.035
1-3/8
3/4
.629
5MF-16-12
1 x 3/4
.035
2-7/16
1
.754
5MF-20-16
1-1/4 x 1
.049
2-7/16
1-1/4
1.005
5MF-24-16
1-1/2 x 1
.049
2-1/16
1-1/2
1.005
5MF-24-20
1-1/2 x 1-1/4
.049
2-3/8
1-1/2
1.255

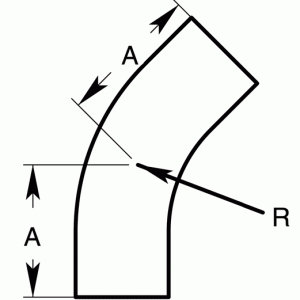

BrazeTyte : 45° Elbow (Male <> Male) Products listed below in blue are available in our Online Store . Please call 800-255-8823 or request a quote for custom orders, products not available in our online store, custom lengths and large quantities.
For direct assembly into machined ports and flanges or into female BrazeTyte expansions. Can be used as a Butt-Weld fitting. Dimensions are in inches.
ITEM #
SIZES
WALL
R
A
45MM-4
1/4
.025
3/8
19/32
45MM-5
5/16
.025
15/32
5/8
45MM-6
3/8
.028
9/16
21/32
45MM-8
1/2
.032
3/4
25/32
45MM-10
5/8
.035
15/16
1
45MM-12
3/4
.042
1-1/8
1-7/32
45MM-16
1
.049
1-1/2
1-19/32
45MM-20
1-1/4
.049
1-7/8
1-27/32
45MM-24
1-1/2
.049
2-1/4
2-1/16

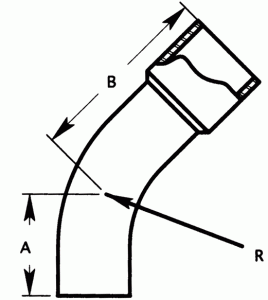

BrazeTyte : 45° Elbow (Male <> Female) Products listed below in blue are available in our Online Store . Please call 800-255-8823 or request a quote for custom orders, products not available in our online store, custom lengths and large quantities.
For direct assembly into machined ports or into female BrazeTyte expansions, female end will accept tube OD or male end of BrazeTyte fitting. When connecting different OD sizes, either the 5MF reducer or the 10MF expander can be employed. Dimensions are in inches.
ITEM #
SIZES
WALL
R
A
B
45MF-4
1/4
.025
3/8
19/32
17/32
45MF-5
5/16
.025
15/32
5/8
9/16
45MF-6
3/8
.028
9/16
21/32
19/32
45MF-8
1/2
.032
3/4
25/32
25/32
45MF-10
5/8
.035
15/16
1
1
45MF-12
3/4
.042
1-1/8
1-7/32
1-7/32
45MF-16
1
.049
1-1/2
1-19/32
1-19/32
45MF-20
1-1/4
.049
1-7/8
1-27/32
1-27/32
45MF-24
1-1/2
.049
2-1/4
2-1/16
2-1/16
BrazeTyte : 45° Elbow (Female <> Female) Products listed below in blue are available in our Online Store . Please call 800-255-8823 or request a quote for custom orders, products not available in our online store, custom lengths and large quantities.
Used as a coupling. Both ends will accept either tube OD or male end of BrazeTyte fitting. When connecting different OD sizes, either the 5MF reducer or the 10MF expander can be employed. Dimensions are in inches.
ITEM #
O.D.
WALL
R
B
45FF-4
1/4
.025
3/8
17/32
45 FF -5
5/16
.025
15/32
9/16
45 FF -6
3/8
.028
9/16
19/32
45 FF -8
1/2
.032
3/4
25/32
45FF-10
5/8
.035
15/16
1
45FF-12
3/4
.042
1-1/8
1-7/32
45FF-16
1
.049
1-1/2
1-19/32
45FF-20
1-1/4
.049
1-7/8
1-27/32

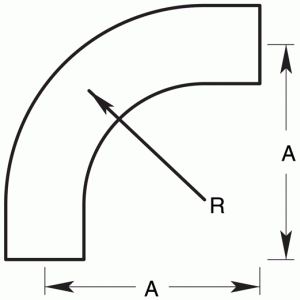

BrazeTyte : 90° Elbow (Male <> Male) Products listed below in blue are available in our Online Store . Please call 800-255-8823 or request a quote for custom orders, products not available in our online store, custom lengths and large quantities.
For direct assembly into machined ports and flanges or into female BrazeTyte expansions. Can be used as a Butt-Weld fitting. Dimensions are in inches.
ITEM #
SIZES
WALL
R
A
90MM-4
1/4
.025
3/8
13/16
90MM-5
5/16
.025
15/32
29/32
90MM-6
3/8
.028
9/16
1
90MM-8
1/2
.032
3/4
1-1/4
90MM-10
5/8
.035
15/16
1-9/16
90MM-12
3/4
.042
1-1/8
1-7/8
90MM-16
1
.049
1-1/2
2-15/32
90MM-20
1-1/4
.049
1-7/8
2-15/16
90MM-24
1-1/2
.049
2-1/4
3-13/32

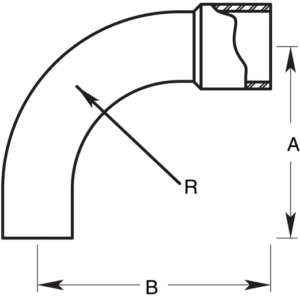

BrazeTyte : 90° Elbow (Male <> Female) Products listed below in blue are available in our Online Store . Please call 800-255-8823 or request a quote for custom orders, products not available in our online store, custom lengths and large quantities.
For direct assembly into machined ports or into female BrazeTyte expansions, female end will accept tube OD or male end of BrazeTyte fitting. When connecting different OD sizes, either the 5MF reducer or the 10MF expander can be employed. Dimensions are in inches.
ITEM #
SIZES
WALL
R
A
B
90MF-4
1/4
.025
3/8
13/16
3/4
90MF-5
5/16
.025
15/32
29/32
27/32
90MF-6
3/8
.028
9/16
1
15/16
90MF-8
1/2
.032
3/4
1-1/4
1-1/4
90MF-10
5/8
.035
15/16
1-9/16
1-9/16
90MF-12
3/4
.042
1-1/8
1-7/8
1-7/8
90MF-16
1
.049
1-1/2
2-15/32
2-15/32
90MF-20
1-1/4
.049
1-7/8
2-15/16
2-15/16
90MF-24
1-1/2
.049
2-1/4
3-13/32
3-13/32

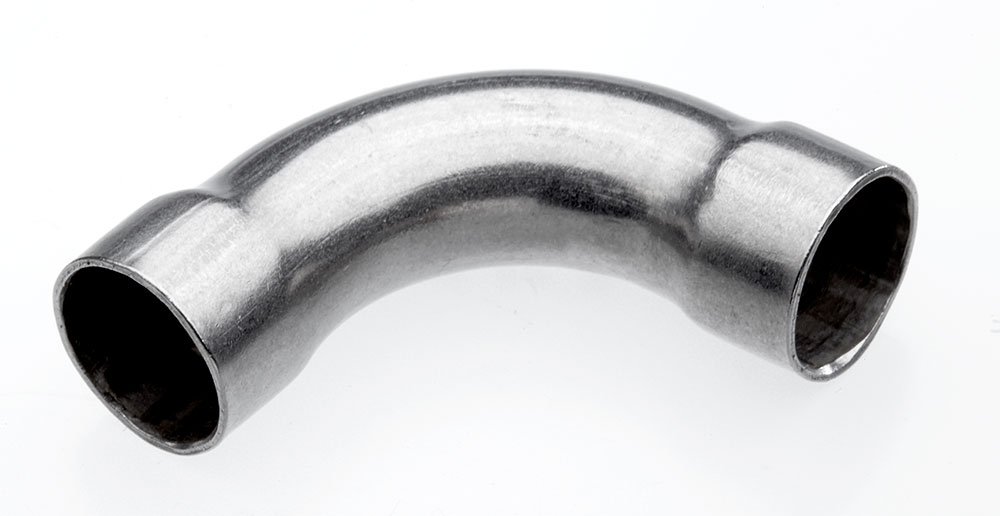

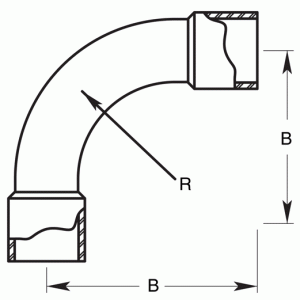

BrazeTyte : 90° Elbow (Female <> Female) Products listed below in blue are available in our Online Store . Please call 800-255-8823 or request a quote for custom orders, products not available in our online store, custom lengths and large quantities.
Both ends will accept either tube OF or male end of BrazeTyte fittings when connecting different OD sizes, either the 5MF reducer or the 10MF expander should be employed. Dimensions are in inches.
ITEM #
SIZES
WALL
R
B
90FF-4
1/4
.025
3/8
3/4
90FF-5
5/16
.025
15/32
27/32
90FF-6
3/8
.028
9/16
15/16
90FF-8
1/2
.032
3/4
1-1/4
90FF-10
5/8
.035
15/16
1-1/2
90FF-12
3/4
.042
1-1/8
1-7/8
90FF-16
1
.049
1-1/2
2-15/32
90FF-20
1-1/4
.049
1-7/8
2-15/16
90FF-24
1-1/2
.049
2-1/4
3-13/32

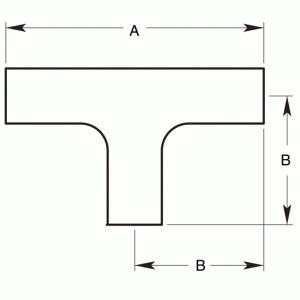

BrazeTyte : Tee (Male <> Male – Male) Products listed below in blue are available in our Online Store . Please call 800-255-8823 or request a quote for custom orders, products not available in our online store, custom lengths and large quantities.
For direct assembly into machined ports and flanges or into female BrazeTyte expansions. Can be used as a Butt-Weld fitting. Dimensions are in inches.
ITEM #
SIZES
WALL
A
B
30MM-5
5/16
.025
1-3/16
19/32
30MM-6
3/8
.028
1-3/8
11/16
30MM-8
1/2
.032
1-5/8
13/16
30MM-10
5/8
.035
2
1
30MM-12
3/4
.042
2-3/8
1-3/16
30MM-16
1
.049
3-1/4
1-5/8
30MM-20
1-1/4
.049
3-5/8
1-13/16
30MM-24
1-1/2
.049
4-1/8
2-1/16

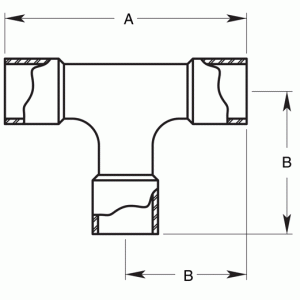

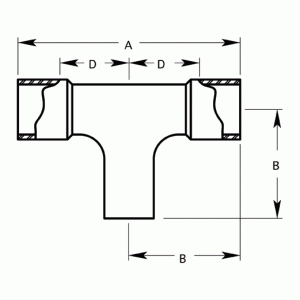

BrazeTyte : Tee (Female <> Female – Female) Products listed below in blue are available in our Online Store . Please call 800-255-8823 or request a quote for custom orders, products not available in our online store, custom lengths and large quantities.
All ends accept either tube OD or male end of BrazeTyte fitting. When used to join different OD sizes, either the 5MF reducer or the 10MF expander can be employed. Dimensions are in inches.
ITEM #
SIZES
WALL
A
B
30FF-4
1/4
.025
1-3/16
19/32
30FF-5
5/16
.025
1-3/8
11/16
30 FF-6
3/8
.028
1-3/8
11/16
30 FF-8
1/2
.032
1-5/8
13/16
30 FF-10
5/8
.035
2
1
30 FF-12
3/4
.042
2-3/8
1-3/16
30 FF-16
1
.049
3-1/4
1-5/8
30 FF-20
1-1/4
.049
3-5/8
1-13/16
30 FF-24
1-1/2
.049
4-1/8
2-1/16
BrazeTyte : Tee (Female <> Female – Male) Products listed below in blue are available in our Online Store . Please call 800-255-8823 or request a quote for custom orders, products not available in our online store, custom lengths and large quantities.
Male for direct assembly into machined ports or into female BrazeTyte expansions. Female ends to accept tube OD or male ends of BrazeTyte fittings. When used to join different OD sizes, either the 5MF reducer or the 10MF expander can be employed. Dimensions are in inches.
ITEM #
SIZES
WALL
A
B
20MF-5
5/16
.025
1-1/16
19/32
20MF-6
3/8
.028
1-1/4
11/16
20MF-8
1/2
.032
1-5/8
13/16
20MF-10
5/8
.035
2
1
20MF-12
3/4
.042
2-3/8
1-3/16
20MF-16
1
.049
3-1/4
1-5/8
20MF-20
1-1/4
.049
3-5/8
1-13/16
20MF-24
1-1/2
.049
4-1/8
2-1/16
BrazeTyte : Tee (Male <> Female – Female) Products listed below in blue are available in our Online Store . Please call 800-255-8823 or request a quote for custom orders, products not available in our online store, custom lengths and large quantities.
Male run for direct assembly into machined ports or into female BrazeTyte expansions. Female ends to accept tube OD or male ends of BrazeTyte fittings. When used to join different OD sizes, either the 5MF reducer or the 10MF expander can be employed. Dimensions are in inches.
ITEM #
SIZES
WALL
A
B
15MF-5
5/16
.025
1-1/8
17/32
15MF-6
3/8
.028
1-5/16
5/8
15MF-8
1/2
.032
1-5/8
13/16
15MF-10
5/8
.035
2
1
15MF-12
3/4
.042
2-3/8
1-3/16
15MF-16
1
.049
3-1/4
1-5/8
15MF-20
1-1/4
.049
3-5/8
1-13/16
15MF-24
1-1/2
.049
4-1/8
2-1/16

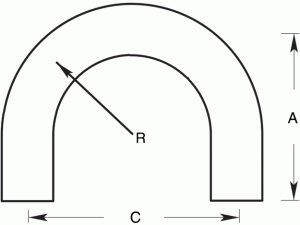

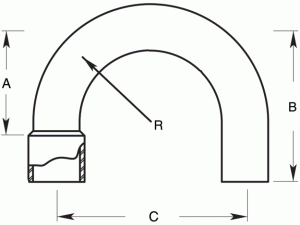

BrazeTyte : 180° Return Bend (Male <> Male) Products listed below in blue are available in our Online Store . Please call 800-255-8823 or request a quote for custom orders, products not available in our online store, custom lengths and large quantities.
For direct assembly into machined ports and flanges or into female BrazeTyte expansions. Can be used as a Butt-Weld fitting. Dimensions are in inches.
ITEM #
SIZES
WALL
R
A
C
180MM-4
1/4
.025
3/8
13/16
3/4
180MM-5
5/16
.025
15/32
29/32
15/16
180MM-6
3/8
.028
9/16
1
1-1/8
180MM-8
1/2
.032
3/4
1-1/4
1-1/2
180MM-10
5/8
.035
15/16
1-9/16
1-7/8
180MM-12
3/4
.042
1-1/8
1-7/8
2-1/4
180MM-16
1
.049
1-1/2
2-15/32
3
180MM-20
1-1/4
.049
1-7/8
2-15/16
3-3/4
180MM-24
1-1/2
.049
2-1/4
3-13/32
4-1/2
BrazeTyte : 180° Return Bend (Male <> Female) Products listed below in blue are available in our Online Store . Please call 800-255-8823 or request a quote for custom orders, products not available in our online store, custom lengths and large quantities.
For direct assembly into machined ports or into female BrazeTyte expansions, female end will accept tube OD or male end of BrazeTyte fitting. When connecting different OD sizes, either the 5MF reducer or the 10MF expander can be employed. Dimensions are in inches.
ITEM #
SIZES
WALL
R
A
B
C
180MF-4
1/4
.025
3/8
13/16
3/4
3/4
180MF-5
5/16
.025
15/32
29/32
15/16
27/32
180MF-6
3/8
.028
9/16
1
1-1/8
15/16
180MF-8
1/2
.032
3/4
1-1/4
1-1/2
1-1/4
180MF-10
5/8
.035
15/16
1-9/16
1-7/8
1-9/16
180MF-12
3/4
.042
1-1/8
1-7/8
2-1/4
1-7/8
180MF-16
1
.049
1-1/2
2-15/32
3
2-15/32
180MF-20
1-1/4
.049
1-7/8
2-15/16
3-3/4
2-15/16
180MF-24
1-1/2
.049
2-1/4
3-13/32
4-1/2
2-13/32

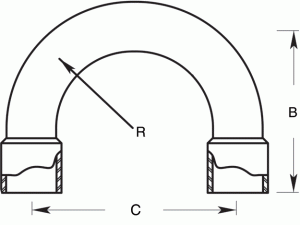

BrazeTyte : 180° Return Bend (Female <> Female) Products listed below in blue are available in our Online Store . Please call 800-255-8823 or request a quote for custom orders, products not available in our online store, custom lengths and large quantities.
Both ends will accept either tube OD or male end of BrazeTyte fittings. When connecting different OD sizes, either the 5MF reducer or the 10MF expander can be employed. Dimensions are in inches.
ITEM #
SIZES
WALL
R
C
B
180FF-4
1/4
.025
3/8
3/4
3/4
180FF-5
5/16
.025
15/32
15/16
27/32
180FF-6
3/8
.028
9/16
1-1/8
15/16
180FF-8
1/2
.032
3/4
1-1/2
1-1/4
180FF-10
5/8
.035
15/16
1-7/8
1-9/16
180FF-12
3/4
.042
1-1/8
2-1/4
1-7/8
180FF-16
1
.049
1-1/2
3
2-15/32
180FF-20
1-1/4
.049
1-7/8
3-3/4
2-15/16
180FF-24
1-1/2
.049
2-1/4
4-1/2
2-13/32
BrazeTyte : Adapter (Male <> Flare) Products listed below in blue are available in our Online Store . Please call 800-255-8823 or request a quote for custom orders, products not available in our online store, custom lengths and large quantities.
Used to provide an easy sub-assembly disconnect. Male end assembles into machine ports or female BrazeTyte expansions. Swivel end mates with SAE 37°, JIC 37° and AN/MS 37° flare type fittings. Type 303 Nut & Sleeve. Call for other 37° Configurations. Dimensions are in inches.
ITEM #
SIZES
WALL
HEX
THREAD
A
10SM-4
1/4
.025
9/16
7/16-20
1-1/32
10SM-5
5/16
.025
5/8
1/2-20
1-1/8
10SM-6
3/8
.028
11/16
9/16-18
1-1/8
10SM-8
1/2
.032
7/8
3/4-16
1-9/32
10SM-10
5/8
.035
1
7/8-14
1-15/32
10SM-12
3/4
.042
1-1/4
1-1/16-12
1-29/32
10SM-16
1
.049
1-1/2
1-5/16-12
2-9/16
10SM-20
1-1/4
.049
2
1-5/8-12
3-1/32
10SM-24
1-1/2
.049
2-1/4
1-7/8-12
3-7/32

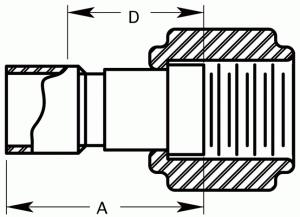

BrazeTyte : Adapter (Female <> Flare) Products listed below in blue are available in our Online Store . Please call 800-255-8823 or request a quote for custom orders, products not available in our online store, custom lengths and large quantities.
Used to provide an easy sub-assembly disconnect. Female end to accept tube OD or male ends of BrazeTyte fittings. Swivel end mates with SAE 37°, JIC 37° and AN/MS 37° flare type fittings. Type 303 Nut & Sleeve. Call for other 37° Configurations. Dimensions are in inches.
ITEM #
SIZES
WALL
HEX
THREAD
A
D
10SF-4
1/4
.025
9/16
7/16-20
1-1/32
25/32
10SF-5
5/16
.025
5/8
1/2-20
1-1/8
7/8
10SF-6
3/8
.028
11/16
9/16-18
1-1/8
7/8
10SF-8
1/2
.032
7/8
3/4-16
1-9/32
31/32
10SF-10
5/8
.035
1
7/8-14
1-15/32
1-1/32
10SF-12
3/4
.042
1-1/4
1-1/16-12
1-29/32
1-13/32
10SF-16
1
.049
1-1/2
1-5/16-12
2-9/16
1-13/16
10SF-20
1-1/4
.049
2
1-5/8-12
3-1/32
10SF-24
1-1/2
.049
2-1/4
1-7/8-12
3-7/32
Methods for Installing BrazeTyte® Fittings
The most effective means for making a stainless connection is either by soldering, brazing or welding. Such joints are strong, leak-tight, corrosion resistant, economical and have a good appearance. BrazeTyte® tube fittings are designed to provide for these assembly methods.
Soldering and Brazing
Soldered or brazed joints resist most corrosive media. The very nature of the process leaves only a small seam exposed to the atmosphere. It is important to choose the proper solder or brazing alloy, which is usually determined by the application and environment of the assembly being fabricated. Certain alloys are formulated with precious metals, imparting corrosion resistance equal to that of the stainless steel.
Soldered or brazed stainless steel connections are extremely strong in both tensile and shear strength. This high strength characteristic is based on the ability of molten brazing alloy to penetrate and fill the gap between bonding areas through “capillary action.”
Welding
The other means of making a permanent joint with BrazeTyte® fittings is by welding. Depending upon the configuration chosen, connections may be made by either of two basic methods, Butt or Lap welding. The technique chosen will be governed by the actual tubing application, the welding equipment available and the skill of the welding operator.
Bonding with Epoxy
BrazeTyte® fittings can also be assembled easily, inexpensively and permanently using epoxy adhesives. A joint can be made quickly by unskilled labor using simple techniques.
There are many types of commercial and industrial epoxy adhesives on the market. These usually are offered as two component kits, one part being the catalyst, which activates the curing of the material. Curing methods of these epoxy adhesives vary. Some cure at room temperatures and in other cases curing is accelerated by the application of heat.
Properly prepared and fully cured bonds are possible that will yield tensile shear strengths of up to 3,500 PSI when tested at room temperature.
Epoxy adhesive is not recommended for systems where temperatures exceed 200° or for use with certain chemicals that might attack the epoxy joint. Please refer to the corrosion resistance table published by the epoxy manufacturer for suitability of the material relative to your application.
Also see Specialty Saw for cutting of small diameter tubing.
