Specialty Saw
MicroGroup, part of TE Connectivity, offers a Specialty Saw and a range of abrasive saw blades to assist you in fabricating your prototypes or finished OEM products and sub-assemblies. Please visit our online store.

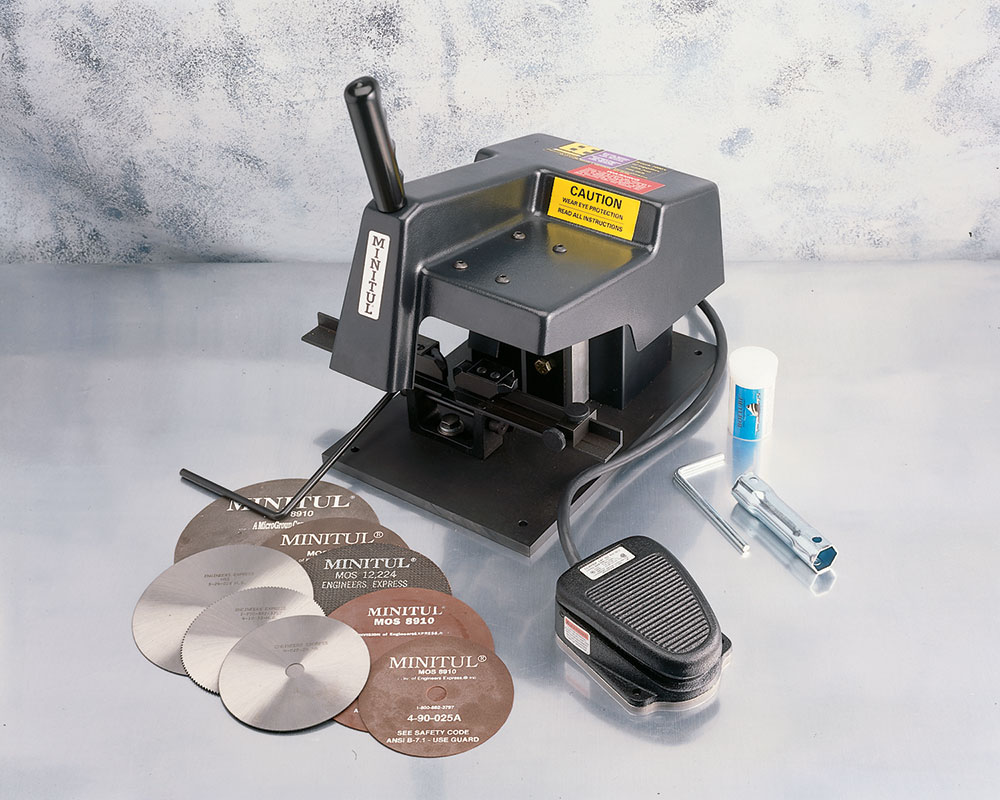

The Model-500 Small Diameter Cut-Off Saw is a portable, easy-to-use tube saw for small diameter cutting requirements. It comes fully assembled and ready to perform efficiently on a variety of materials from aluminum to stainless steel tubing. MicroGroup stocks all replacement parts for the Model-500 saw, which comes with two metal cutting blades, a stick of Boelube (item 70200-13), and a 90-day warranty.
Features
- Cut lengths from 1/16″
- Cuts with Minimal Burr
- Miters to 30 degrees
- Portable 115v AC
- Cuts to 1/2″ Cross Section
- Double-Acting Vise
- Cuts to +/- 0.005″ Tolerance
- 1/2″ Arbor
- Positive Drive Belt
- Foot Control
- 2 Free Blades (5-080-030A)
Applications
- Stainless Steel
- Brass
- Copper
- Glass
- Plastic
- Composites
- Braided Cable
- Coax Cable
- Armored Cable
- Most Materials
Abrasive Cut-Off Blades
MicroGroup stocks a wide variety of saw blades for most applications and requirements. Below is a comprehensive list of the blades in stock for immediate shipment.
Also available on our online store.
|
Item #
|
General Purpose Saw Blades
|
Diameter | Grit/#Teeth | Thickness | Type | Arbor Size | Alum < 1/4″ | Alum > 1/4″ | Brass < 1/4″ | Brass > 1/4″ | Copper < 1/8″ | Copper > 1/8″ | Glass | Plastics < 1/8″ | Plastics > 1/8″ | Steel Stainless | Steel | Wood | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4-240-013A | Non-Reinforced Rubber Abrasive Blade with Special Mixed Abrasive Sizes for minimum burr. Most commonly used for cutting any steels up to 1/2″ diameter. | 4 | 240 | 013 | A | 1/2 |  |
|
|
|
||||||||||
| 4-120-016A | Non-Reinforced Rubber Abrasive Blade with Special Mixed Abrasive Sizes for minimum burr. Most commonly used for cutting any steels up to 1/2″ diameter. | 4 | 120 | 016 | A | 1/2 | |
|
|
|
||||||||||
| 5-120-015A | Non-Reinforced Rubber Abrasive Blade. Recommended for cutting metals when #5-80-030 causes motor to labor excessively or when burrs are unacceptable. The blade is somewhat fragile and used for very light wall to 1/2″ diameter. | 5 | 120 | 015 | A | 1/2 |  |
|
||||||||||||
| 4-090-025A | Non-Reinforced Rubber Abrasive Blade. Rugged blade cuts metals, reduces motor load. Best blade if used only occasionally), due to rugged construction, to be used on most stock over 3/8″ dia. | 4 | 90 | 025 | A | 1/2 | |
|
|
|
||||||||||
| 4-060-030AR | Heavy Duty Reinforced Resin Abrasive Blade Can be used for cutting Titanium | 4 | 60 | 047 | A | 1/2 | |
|
||||||||||||
| 5-060-030AR | Heavy Duty Reinforced Resin Abrasive Blade Can be used for cutting Titanium | 5 | 60 | 047 | A | 1/2 | |
|
||||||||||||
| 5-080-030A | Heavy Duty Non-Reinforced Rubber Abrasive Blade. Similar to 4-90-025A. The best all purpose blade. For heavy cuts. | 5 | 80 | 030 | A | 1/2 | |
|
|
|
||||||||||
| 5-080-035A | Heavy Duty Non-Reinforced Rubber Abrasive Blade. Similar to 4-90-025A. The best all purpose blade. For heavy cuts. | 5 | 80 | 035 | A | 1/2 | |
|
|
|
||||||||||
| 5-080-060A | For extra-heavy cuts. | 5 | 80 | 060 | A | 1/2 | |
|
|
|
||||||||||
| 5-046-060AR | Heavy Duty Reinforced Resin Abrasive Blade. Similar to 4-90-025A. For heavy cuts. | 5 | 46 | 067 | A | 1/2 | |
|
||||||||||||
| 4-SPL-009S | Non-Reinforced Rubber/Silicon Carbide Blade. Silicon abrasive allows this blade to cut through very small diameter hypodermic tubing, drill blanks and glass; However, this blade requires extreme care in handling to prevent breakage since it is only .009″ thick. Use with a Boelube®. | 4 | – | 009 | S | 1/2 | |
|||||||||||||
| 4-120-025S | Non-Reinforced Rubber/Silicon Carbide Heavy Duty Blade for cutting glass, ceramics, and thermocouple cable. Should be used with Boelube®. | 4 | 120 | 025 | S | 1/2 | |
|||||||||||||
| 4-028-024HS | High-Speed Steel Blade.Used for plastics and wood without lubricant. Excellent for cutting copper, aluminum and brass. Use with a Boelube®,except on brass (cut dry). | 4 | 28 | 024 | HS | 1/2 | |
|
|
|
|
|||||||||
| 5-024-028HS | High-Speed Steel Blade.Used for plastics and wood without lubricant. Excellent for cutting copper, aluminum and brass. Use with a Boelube®,except on brass (cut dry). | 5 | 24 | 028 | HS | 1/2 | |
|
|
|
|
|||||||||
| 5-010-030HG | Hollow-Ground High-Speed Steel Blade. Used on larger sections of soft metals and wood due to hollow ground side which prevents jamming in cut. Excellent for cutting copper, aluminum and brass. Should be used with Boelube®, except on brass (cut dry). | 5 | 10 | 030 | HG | 1/2 | |
|
|
|
|
|
| A = Aluminum Oxide | S = Silicon Carbide | HS = High Speed Steel |
| HG = Hollow Ground High Speed Steel | = Dry Cut |
= Use Boelube |
