How to Specify HozeTyte® Tube Fittings
HozeTyte® stainless steel tube connectors are designed to attach flexible hose to rigid metal tubing. Part numbers for HozeTyte® transitions use symbols that identify the size and style of the fitting.
The first dash number indicates hose ID size by 1/16 inch increments, thus -4 means 4/16″ or 1/4″, -10 means 10/16″ or 5/8″, etc. The first series of numbers identifies the style or configuration of the fitting. The letters designate combinations of male, hose and pipe ends of the part.
Pipe ends are designated by the dash number. These are not outside diameters, but rather standard NPTF screw thread sizes.
Also see Specialty Saw for cutting of small diameter tubing.
LETTER DESIGNATION
EXAMPLE: 90MH-8
HH
MH
PH
All Hose
Male and Hose
Pipe and Hose
90
Style
90°
Elbow
MH
male
and
hose
-8
hose ID
size
1/2″
Click on any Fitting for Specifications
HozeTyte : Connector (Hose Bead <> Hose Bead) Products listed below in blue are available in our Online Store . Please call 800-255-8823 or request a quote for custom orders, products not available in our online store, custom lengths and large quantities.
Used as a connector to join flexible non-metallic hoses. Dimensions are in inches.
ITEM #
SIZES
WALL
A
10HH-4
1/4
.025
3
10HH-6
3/8
.028
3
10HH-8
1/2
.032
3
10HH-10
5/8
.035
3
10HH-12
3/4
.042
3
10HH-16
1
.049
3
10HH-20
1-1/4
.049
3
10HH-24
1-1/4
.049
3
HozeTyte : Adapter (Male Tube <> Hose Bead) Products listed below in blue are available in our Online Store . Please call 800-255-8823 or request a quote for custom orders, products not available in our online store, custom lengths and large quantities.
Used to connect a flexible non-metallic hose to a female pipe port. Dimensions are in inches.
ITEM #
SIZES
WALL
A
10MH-4
1/4
.025
1-23/32
10MH-6
3/8
.028
1-23/32
10MH-8
1/2
.032
1-23/32
10MH-10
5/8
.035
1-25/32
10MH-12
3/4
.042
1-27/32
10MH-16
1
.049
1-27/32
10MH-20
1-1/4
.049
1-27/32
10MH-24
1-1/2
.049
1-7/8

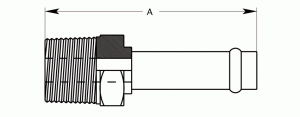

HozeTyte : Adapter (Male Pipe Thread <> Hose Bead) Products listed below in blue are available in our Online Store . Please call 800-255-8823 or request a quote for custom orders, products not available in our online store, custom lengths and large quantities.
Used to connect a flexible non-metallic hose to a female pipe port. Dimensions are in inches.
ITEM #
SIZES
WALL
A
HEX
NPT
10PH-4
1/4
.025
2-1/8
7/16
1/8
10PH-6
3/8
.028
2-1/4
5/8
1/4
10PH-8
1/2
.032
2-3/8
11/16
3/8
10PH-10
5/8
.035
2-1/2
7/8
1/2
10PH-12
3/4
.042
2-9/16
1-1/16
3/4
10PH-16
1
.049
2-11/16
1-3/8
1
10PH-20
1-1/4
.049
2-13/16
1-3/4
1-1/4
10PH-24
1-1/2
.049
3
2
1-1/2

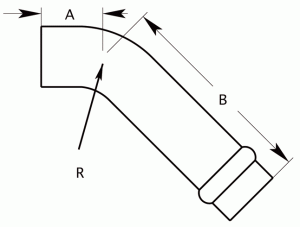

HozeTyte : 45° Elbow (Male Tube <> Hose Bead) Products listed below in blue are available in our Online Store . Please call 800-255-8823 or request a quote for custom orders, products not available in our online store, custom lengths and large quantities.
Used to connect a flexible non-metallic hose to a vessel (feed tank, reservoir, etc.) where a 45° angle is required. Male end can be brazed or welded. Dimensions are in inches.
ITEM #
O.D.
WALL
R
A
B
45MH-4
1/4
.025
3/8
3/4
1-13/16
45MH-6
3/8
.028
9/16
7/8
1-15/16
45MH-8
1/2
.032
3/4
1-3/32
2-3/32
45MH-10
5/8
.035
7/8
1-5/16
2-3/16
45MH-12
3/4
.042
1-1/8
1-5/8
2-3/8
45MH-16
1
.049
1-1/2
2-5/32
2-11/16
45MH-20
1-1/4
.049
1-7/8
2-17/32
2-31/32
45MH-24
1-1/2
.049
2-1/4
2-15/16
3-1/4

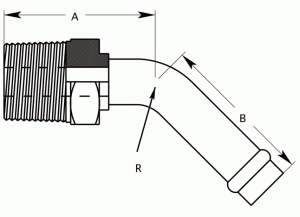

HozeTyte : 45° Elbow (Male Pipe Thread <> Hose Bead) Products listed below in blue are available in our Online Store . Please call 800-255-8823 or request a quote for custom orders, products not available in our online store, custom lengths and large quantities.
Used to connect a flexible non-metallic hose to a female pipe port where a 45° angle is required. Male end can be brazed or welded. Dimensions are in inches.
ITEM #
SIZES
WALL
R
A
B
HEX
NPT
45PH-4
1/4
.025
3/8
1-1/8
1-13/16
7/16
1/8
45PH-6
3/8
.028
9/16
1-13/32
1-15/16
5/8
1/4
45PH-8
1/2
.032
3/4
1-3/4
2-3/32
11/16
3/8
45PH-10
5/8
.035
7/8
21/32
2-3/16
7/8
1/2
45PH-12
3/4
.042
1-1/8
2-11/32
2-3/8
1-1/16
3/4
45PH-16
1
.049
1-1/2
3
2-11/16
1-3/8
1
45PH-20
1-1/4
.049
1-7/8
3-19/32
2-31/32
1-3/4
1-1/4
45PH-24
1-1/2
.049
2-1/4
4-1/32
3-1/4
2
1-1/2

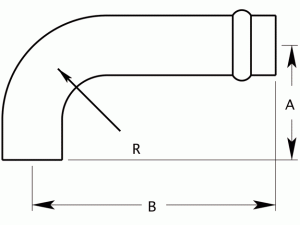

HozeTyte : 90° Elbow (Male Tube <> Hose Bead) Products listed below in blue are available in our Online Store . Please call 800-255-8823 or request a quote for custom orders, products not available in our online store, custom lengths and large quantities.
Used to connect a flexible non-metallic hose to a vessel (feed tank, reservoir etc.) where a 90° angle is required. Male end can be brazed or welded. Dimensions are in inches.
ITEM #
SIZES
WALL
R
A
B
90MH-4
1/4
.025
3/8
13/16
1-7/8
90MH-6
3/8
.028
9/16
1
2-1/16
90MH-8
1/2
.032
3/4
1-1/4
2-1/4
90MH-10
5/8
.035
7/8
1-9/16
2-3/8
90MH-12
3/4
.042
1-1/8
1-7/8
2-5/8
90MH-16
1
.049
1-1/2
2-15/32
3
90MF-20
1-1/4
.049
1-7/8
2-15/16
3-3/8
90MF-24
1-1/2
.049
2-1/4
3-13/32
3-3/4

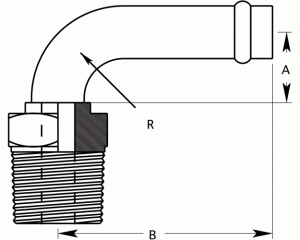

HozeTyte : 90° Elbow (Male Pipe Thread <> Hose Bead) Products listed below in blue are available in our Online Store . Please call 800-255-8823 or request a quote for custom orders, products not available in our online store, custom lengths and large quantities.
Used to connect a flexible non-metallic hose to a pipe port where a 90° angle is required. Dimensions are in inches.
ITEM #
SIZES
WALL
R
A
B
90PH-4
1/4
.025
3/8
1-7/32
1-7/8
90PH-6
3/8
.028
9/16
1-17/32
2-1/16
90PH-8
1/2
.032
3/4
1-29/32
2-1/4
90PH-10
5/8
.035
7/8
2-7/32
2-3/8
90PH-12
3/4
.042
1-1/8
2-19/32
2-5/8
90PH-16
1
.049
1-1/2
3-5/16
3
90PF-20
1-1/4
.049
1-7/8
3
3-3/8
90PF-24
1-1/2
.049
2-1/4
4-17/32
3-3/4
