Compression Fittings

TuohysMicroGroup compression fittings allow quick, easy connection to a wide variety of materials and tube diameters. These handy components eliminate the need for time consuming and costly secondary operations including welding, brazing, soldering and more. Primarily stocked as 316 stainless steel compression fittings with reusable and replaceable silicone seals, custom materials are available upon request.

Also see Specialty Saw for cutting of small diameter tubing.

Features:

  • Resists extreme temperature variations: 100°F to 350°F
  • FDA approved materials
  • Easy to disconnect and reuse
  • Compatible with a wide variety of materials and tube diameters
  • Up to 90 PSI liquid and air maximum

Applications:

  • Surgical, Medical, Dental, Laboratory
  • Any other small-diameter application requiring quick, high-integrity connections

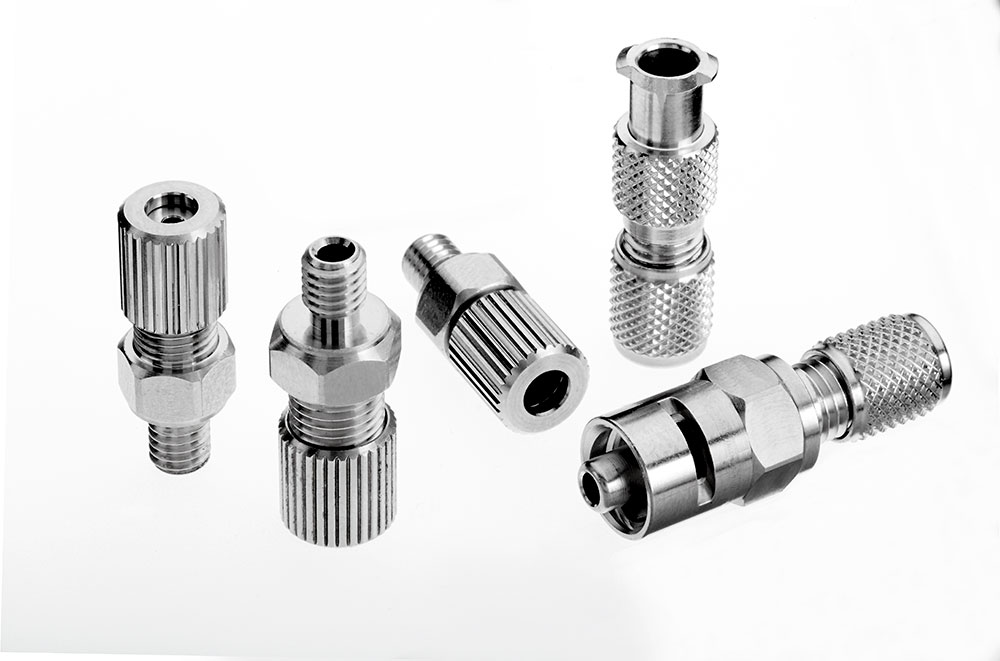

Compression Fittings for Stainless Steel Tubing

ITEM DESCRIPTION PART NUMBER MATERIAL
1 MAIN BODY 316-1032-TUOHY-1 ITEM 1 316 (S/S)
2 BUSHING 316-1032-TUOHY-1 ITEM 2 316 (S/S)
3 SEAL 316-1032-TUOHY-1 ITEM 3 SILICONE
4 CAP NUT 316-1032-TUOHY-1 ITEM 4 316 (S/S)

ITEM # DESCRIPTION FRACTIONAL SIZES FRENCH SIZES
tuohy 1 316-1032-TUOHY-1 Tuohy Borst to Male 1032 Thread 1/64″ – 1/16 ”
013″ – .063″
1fr – 5fr
tuohy 2 316-1032-TUOHY-2 Tuohy Borst to Male 1032 Thread 1/16″ – 3/32″
062″ – .093″
5fr – 7fr
tuohy 3 316-1032-TUOHY-3 Tuohy Borst to Male 1032 Thread 3/32″ – 1/8″
.093″ – .125″
7fr – 9fr
tuohy 4 316-FL-TUOHY-4 Tuohy Borst to Female Luer 1/64″ – 5/64″
.013″ – .079″
1fr – 6fr
tuohy 5 316-MLL-TUOHY-5 Tuohy Borst to Male Luer Lock 1/64″ – 5/64″
.013″ – .079″
1fr – 6fr
