ModuLUER Fittings
ModuLUER® fittings utilize male and female components that twist and lock for quick connections and disconnections between rigid or flexible tubing, or between component parts such as between a needle and a syringe.
MicroGroup manufactures stainless steel luer-type fittings in-house, and offers the industry’s widest selection of luer fittings/valves.
Also see Specialty Saw for cutting of small diameter tubing.
ModuLUER® Luer Fittings, Valves & Inspection Gauges
316-ML/B250-6H3
316-ML/BHB062-6H2
316-ML/MP125-7H3
316-ML/MP250-9H3
316-ML/MT1032-6H3
316-MLL-6RB
316-MLL/B062-6H2
316-MLL/BHB062-6H2
316-MLL/BHB125-6H3
316-MLL/FP125-9H3
316-MLL/FT1032-6H3
316-MT1032/B032-5H1
316-MP062/B188-6H3
316-B032-2R1
316-B062/B250-6H2
316-SK100/B125-3
316-SK200/B188-3

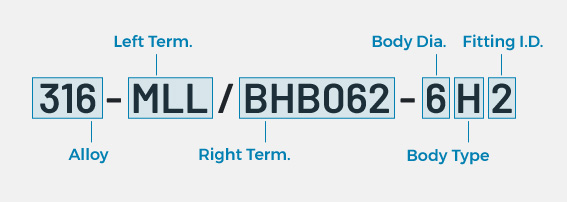

Standard Part Numbering
| Alloy | |
|---|---|
| 316 | 316 Stainless Steel |
| Left Termination | |
|---|---|
| B032 | 1/32″ Barb |
| B062 | 1/16″ Barb |
| B125 | 1/8″ Barb |
| B188 | 3/16″ Barb |
| B250 | 1/4″ Barb |
| FL | Female Luer |
| FLT | Female Luer Thread |
| FP125 | 1/8″ Female Pipe |
| FT1032 | 10-32 Female Thread |
| FT2528 | 1/4-28 Female Thread |
| FT2532 | 1/4-32 Female Thread |
| ML | Male Luer |
| MLL | Male Luer Lock |
| MP062 | 1/16″ Male Pipe |
| MP125 | 1/8″ Male Pipe |
| MP250 | 1/4″ Male Pipe |
| MT1032 | 10-32 Male Thread |
| MT2528 | 1/4-28 Male Thread |
| MT2532 | 1/4-32 Male Thread |
| SK | Sinker |
| Right Termination | |
|---|---|
| B032 | 1/32″ Barb |
| B062 | 1/16″ Barb |
| B125 | 1/8″ Barb |
| B188 | 3/16″ Barb |
| B250 | 1/4″ Barb |
| BHB032 | 1/32″ Bulkhead Barb |
| BHB062 | 1/16″ Bulkhead Barb |
| BHB125 | 1/8″ Bulkhead Barb |
| FL | Female Luer |
| FLT | Female Luer Thread |
| FT1032 | 10-32 Female Thread |
| FT2528 | 1/4-28 Female Thread |
| FT2532 | 1/4-32 Female Thread |
| HUB | Hub |
| ML | Male Luer |
| MLL | Male Luer Lock |
| MP062 | 1/16″ Male Pipe |
| MP125 | 1/8″ Male Pipe |
| MT1032 | 10-32 Male Thread |
| MT2528 | 1/4-28 Male Thread |
| MT2532 | 1/4-32 Male Thread |
| Body Diameter | |
|---|---|
| 2 | 1/8″ |
| 4 | 1/4″ |
| 5 | 5/16″ |
| 6 | 3/8″ |
| 7 | 7/16″ |
| Body Type | |
|---|---|
| H | Hex Body |
| K | Knurl Body |
| R | Round Body |
| Fitting Inside Diameter | |
|---|---|
| 1 | .018/.020 |
| 2 | .060/.062 |
| 3 | .093/.094 |
| B | No Bore Smallest I.D. |
As an option we can add “O-Rings” to male LUERS and LUER Locks.
Actual barb O.D.’s are manufactured oversized.
E.P.D.M. rubber washers on all male straight threads available upon request.
