45° Elbow
(Male Pipe Thread <> Hose Bead)
Used to connect a flexible non-metallic hose to a female pipe port where a 45° angle is required. Male end can be brazed or welded.
Dimensions are in inches.
Call 800-All-Tube for Pricing

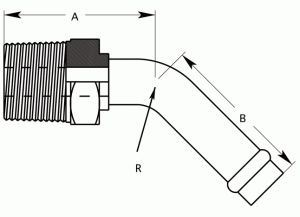

| Item # | Sizes | Wall | R | A | B | HEX | NPT |
| 45PH-4 | 1/4 | .025 | 3/8 | 1-1/8 | 1-13/16 | 7/16 | 1/8 |
| 45PH-6 | 3/8 | .028 | 9/16 | 1-13/32 | 1-15/16 | 5/8 | 1/4 |
| 45PH-8 | 1/2 | .032 | 3/4 | 1-3/4 | 2-3/32 | 11/16 | 3/8 |
| 45PH-10 | 5/8 | .035 | 7/8 | 21/32 | 2-3/16 | 7/8 | 1/2 |
| 45PH-12 | 3/4 | .042 | 1-1/8 | 2-11/32 | 2-3/8 | 1-1/16 | 3/4 |
| 45PH-16 | 1 | .049 | 1-1/2 | 3 | 2-11/16 | 1-3/8 | 1 |
| 45PH-20 | 1-1/4 | .049 | 1-7/8 | 3-19/32 | 2-31/32 | 1-3/4 | 1-1/4 |
