45° Elbow
(Male Tube <> Hose Bead)

45 Elbow M

Used to connect a flexible non-metallic hose to a vessel (feed tank, reservoir, etc.) where a 45° angle is required. Male end can be brazed or welded.

Dimensions are in inches.

Call 800-All-Tube for Pricing

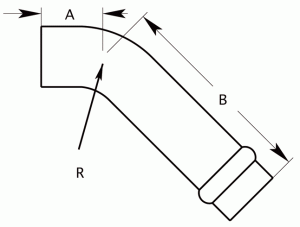

Item # O.D. Wall R A B
45MH-4 1/4 .025 3/8 3/4 1-13/16
45MH-6 3/8 .028 9/16 7/8 1-15/16
45MH-8 1/2 .032 3/4 1-3/32 2-3/32
45MH-10 5/8 .035 7/8 1-5/16 2-3/16
45MH-12 3/4 .042 1-1/8 1-5/8 2-3/8
45MH-16 1 .049 1-1/2 2-5/32 2-11/16
45MH-20 1-1/4 .049 1-7/8 2-17/32 2-31/32
45MH-24 1-1/2 .049 2-1/4 2-15/16 3-1/4
