Reducer
(Male OD <> Female ID)
Used as an adapter where a reduction from larger OD to a smaller OD is required. Can be employed in conjunction with any MF, FF, or SF style fitting to reduce female BrazeTyte end.

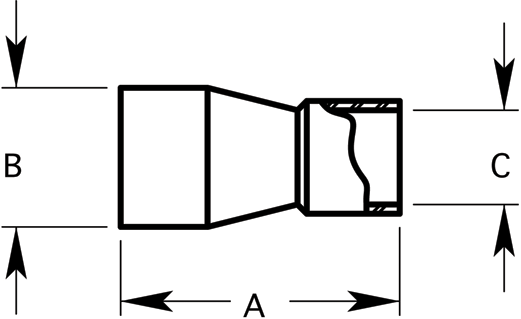

Dimensions are in inches.
Call 800-All-Tube for Pricing
Item # | Sizes | Wall | A | B | C |
5MF-5-4 | 5/16 x 1/4 | .025 | 15/16 | 5/16 | .254 |
5MF-6-4 | 3/8 x 1/4 | .025 | 7/8 | 3/8 | .254 |
5MF-8-4 | 1/2 x 3/8 | .032 | 1-9/32 | 1/2 | .379 |
5MF-12-10 | 3/4 x 5/8 | .035 | 1-3/8 | 3/4 | .629 |
5MF-24-16 | 1-1/2 x 1 | .049 | 2-1/16 | 1-1/2 | 1.005 |
5MF-24-20 | 1-1/2 x 1-1/4 | .049 | 2-3/8 | 1-1/2 | 1.255 |
