180° Return Bend
(Male <> Male)

180 Return MM

For direct assembly into machined ports and flanges or into female BrazeTyte expansions. Can be used as a Butt-Weld fitting.

Dimensions are in inches.

Call 800-All-Tube for Pricing

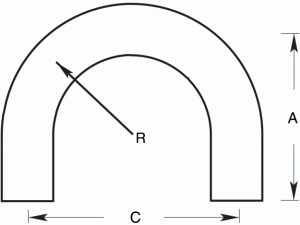

Item # Sizes Wall R A C
180MM-4 1/4 .025 3/8 13/16 3/4
180MM-5 5/16 .025 15/32 29/32 15/16
180MM-6 3/8 .028 9/16 1 1-1/8
180MM-8 1/2 .032 3/4 1-1/4 1-1/2
180MM-10 5/8 .035 15/16 1-9/16 1-7/8
180MM-12 3/4 .042 1-1/8 1-7/8 2-1/4
180MM-16 1 .049 1-1/2 2-15/32 3
180MM-20 1-1/4 .049 1-7/8 2-15/16 3-3/4
180MM-24 1-1/2 .049 2-1/4 3-13/32 4-1/2
