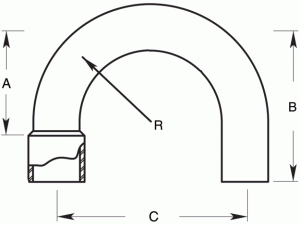

180° Return Bend
(Male <> Female)

180 Return MF

For direct assembly into machined ports or into female BrazeTyte expansions, female end will accept tube OD or male end of BrazeTyte fitting. When connecting different OD sizes, either the 5MF reducer or the 10MF expander can be employed.

Dimensions are in inches.

Call 800-All-Tube for Pricing

Item # Sizes Wall R A B C
180MF-4 1/4 .025 3/8 13/16 3/4 3/4
180MF-5 5/16 .025 15/32 29/32 15/16 27/32
180MF-6 3/8 .028 9/16 1 1-1/8 15/16
180MF-8 1/2 .032 3/4 1-1/4 1-1/2 1-1/4
180MF-10 5/8 .035 15/16 1-9/16 1-7/8 1-9/16
180MF-16 1 .049 1-1/2 2-15/32 3 2-15/32
180MF-20 1-1/4 .049 1-7/8 2-15/16 3-3/4 2-15/16
180MF-24 1-1/2 .049 2-1/4 3-13/32 4-1/2 2-13/32
