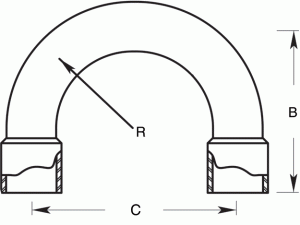

180° Return Bend
(Female <> Female)

180 Return FF

Both ends will accept either tube OD or male end of BrazeTyte fittings. When connecting different OD sizes, either the 5MF reducer or the 10MF expander can be employed.

Dimensions are in inches.

Call 800-All-Tube for Pricing

Item # Sizes Wall R C B
180FF-4 1/4 .025 3/8 3/4 3/4
180FF-5 5/16 .025 15/32 15/16 27/32
180FF-6 3/8 .028 9/16 1-1/8 15/16
180FF-8 1/2 .032 3/4 1-1/2 1-1/4
180FF-10 5/8 .035 15/16 1-7/8 1-9/16
180FF-16 1 .049 1-1/2 3 2-15/32
180FF-20 1-1/4 .049 1-7/8 3-3/4 2-15/16
180FF-24 1-1/2 .049 2-1/4 4-1/2 2-13/32
